Punching Machines T4 T5 T6 T66 aluminium heatsink extrusions ROHS / SGS

Hentec Industry Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment

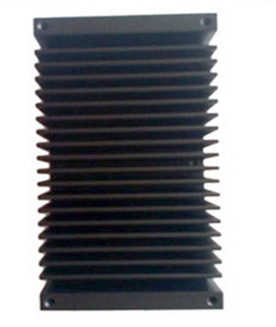

Punching Machines T4 T5 T6 T66 aluminium heatsink extrusions ROHS / SGS

Brand Name : HT

Model Number : KTH-007

Certification : CA ,CE

Place of Origin : China

MOQ : 1 ton

Payment Terms : T/T ,L/C

Supply Ability : 100 000ton each month

Delivery Time : 20days

Packaging Details : Ep paper ,kraft ,pallet

product name : Aluminum Heatsink Extrusion Profiles

Alloy : 6063,6061,6005

Material : Aluminum

Suface Treatment : Mill Finished,Anodized ,Electrophoretic coated,Powder spray coated

Deep process : Milling, Drilling, Bending,Cutting

Temper : T4, T5, T6 ,T66

Contact Now

Descrition:

High Quality Aluminum Heatsink Extrusion Profiles Punching Machines ROHS / SGS


Hentec Industry is dedicated to the development, manufacture and marketing of high-performance aluminum heat sink profiles . These profile are used on LED lamps ,computer , electrical and electronics instruments .

Material

Aluminum alloy

Surface Treatment

Polishing, Powder coating, Spraying, Anodising, Zinc Plating and etc

Tolerance

+/-0.02~0.05mm

Equipments

a) CNC Machining Center

b) Extrusion Mchine
c) CNC Milling Machines
d) Punching Machines
e) Precision Cutting Machines
f) Argon Welding Machines

g)NC Bending Machine

h) Anodized /Powder painted line

Preferred Formats

JPEG, PDF,CAD,IGS,STP

Preferred Industries

a) Communication Equipments

b) Medical Equipments

c) House Hardware

d) Toy Air soft

e) Mechanical Equipments

f) Other customized Parts


Applications:
Aluminum heat sink is widely used on Machines , cars , lighter ...

Specifications:
1. Primary Technical Data
1)Chemical composition

Alloy

Si

Fe

Cu

Mn

Mg

Cr

Zn

Ti

Impurity

Al

6063

0.2-0.6

0.35

0.1

0.1

0.45-0.9

0.1

0.1

0.1

0.15

Rest

6061

0.4-0.8

0.7

0.15-0.4

0.15

0.8-1.2

0.04-0.35

0.25

0.15

0.15

Rest

6060

0.3-0.6

0.1-0.3

0.1

0.1

0.35-0.6

-

0.15

0.1

0.15

Rest

6005

0.6-0.9

0.35

0.1

0.1

0.40-0.6

0.1

0.1

0.1

0.15

Rest


2) Mechanical property

Alloy

Temper

Tensile strength

Yield strength

Elongation

6063

T5

≥ 160Mpa

≥ 110Mpa

≥ 8%

T6

≥ 205Mpa

≥ 180Mpa

≥ 8%

6061

T6

≥ 265Mpa

≥ 245Mpa

≥ 8%


Punching Machines T4 T5 T6 T66 aluminium heatsink extrusions ROHS / SGS
Competitive Advantage:
We can offer professional Manufacturing and exporting service, OEM/ODM for Metal & Plastic parts in China. All the parts manufactured by CNC Lathe & Milling Machine Center.
Punching Machines T4 T5 T6 T66 aluminium heatsink extrusions ROHS / SGS
